Mixing Systems Handles Ultra-High Viscosity Materials

The models are engineered for processing silicone formulations in a portable workstation.

Ross News Release July 2023 Ross Dpm 4 S And Ds 4 S
Charles Ross & Son Company

Charles Ross & Son Company (Hauppauge, NY) announced its Double Planetary Mixers, which come in a range of configurations and sizes from Â― pint to 750 gallons and are ideal for mixing thick, sticky or putty-like materials.

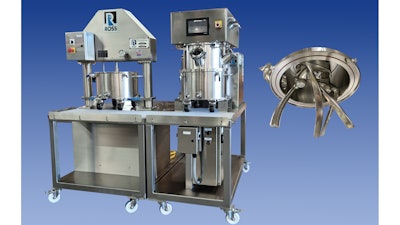

The Sanitary Double Planetary Mixer Model DPM-4S and Sanitary Discharge System Model DS-4S are fully customized and engineered for processing of medical-grade silicone formulations in a portable workstation.

Heavy-duty 4-gallon Double Planetary Mixer features:

  • Two patented High Viscosity stirrer blades which rotate on their own axes while orbiting mix vessel on common axis with slicing motion that pushes product forward and downward
  • Equipped with electromechanical lift to raise/lower vacuum hood
  • 50-psig heating/cooling jacket on mix can
  • Product contact parts constructed from stainless steel type 316, 150-grit finish and electropolished
  • Operated through 7" color touch screen interface
  • PLC Recipe Controls that deliver batch-to-batch consistency

Discharge System features:

  • Maximizes product yield while simplifying clean-up
  • Platen that is lowered hydraulically into mix vessel
  • As platen pushes down on batch, product is forced out through valve on side or center bottom of vessel with minimal product left behind
  • Change-can design that enables semi-continuous operation

mixers.com
